USF Series Universal System Frame

Universal modular frame designed for compact, economical system building. Build an optimal system for your environment from a full array of modules.




Features

  • Available frames
    - USF-105AS: 1U size. Holds up to 5 modules.
    - USF-212AS/212BS: 2U size. Holds up to 12 modules.
  • Hot-swappable, front-accessible power unit and module bays.
  • New design combining SDI and Ethernet.
  • 2 genlock inputs (Black burst (BB) or tri-level sync)(USF-212AS/212BS), 1 genlock input (USF-105AS).
  • Built-in Gigabit Ethernet hub for GUI-based module configuration.
  • Frame operational monitoring (cooling fan and power) and module life-and-death monitoring using SNMP.



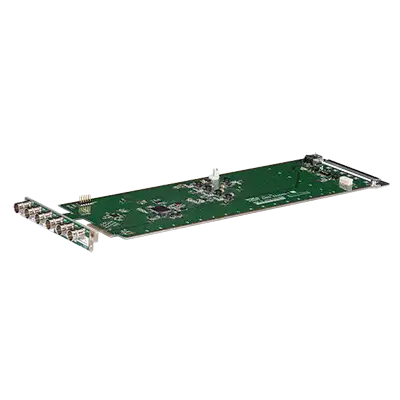

Module list

Below is the maximum number of modules mounted on each frame. For details, please contact FOR-A office.



Module/Frame USF-212BS USF-212AS USF-105AS
USF-10IP-TRC 5 - -
USF-10IPSDI6-FS 5 5 -
USF-10IPSDI12-FS 3 3 -
USF-106TICO-12G 6 6 2
USF-1043VTG-LI 6 6 2
USF-1043SS 6 6 2
USF-1043FS 12 12 5
USF-105FS-12G 12 12 3
USF-106UDC-12G 6 6 2
USF-106DC-12G 6 6 2
USF-111DDA-12G 6 6 2
USF-105DDA-12G 12 12 5
USF-1053DDA 12 12v 5
USF-1043VM 12 12 5
USF-1100VEA 6 6 2
USF-1040VEA 12 12 5
USF-105DADA 12 12 5
USF-108ADA 12 12 5
USF-204ADAC 12 12 5
USF-402AADC 12 12 5
USF-101MDX4-12G 6 6 2
USF-101MDX8-12G 6 6 2
USF-1013MUX 12 12 5
USF-1013DEMUX 12 12 5
USF-80SDICS 12 12 5
