Ikegami is a leading manufacturer of specialized cameras, image processing and transmission equipment. Ikegami was founded in 1946 in Tokyo, Japan. Today around 800 employees are working in 3 factories and 9 sales and service organizations all over the world. Ikegami has consistently created the most advanced products in all image processes, namely image, transmission, processing, recording and display. Ikegami Electronics Asia Pacific Pte.Ltd. (Ikegami APAC) in Singapore, was founded in 2014 and it is the sales and service organization for Asia Pacific except China,Taiwan,Korea,and Japan.

UHL-F4000

The UHL-F4000 is a 4K/HD 3CMOS Multi-Purpose separate optics 2-piece camera, featuring a compact, lightweight, and low power consuming camera head (optical block), which makes the camera especially well suited for helicopter camera applications. As the succeeding model of the HDL-F3000, the F4000 is newly equipped with Global Shutter CMOS sensors, which capture natural images completely clear of geometric distortion during still frame analysis and flash band effects. The F4000 is also newly capable of outputting 4K and Cutout HD images, but its significant low light capability has been passed down from its former model. Additional improvements in its image processing functions such as Variable Contrast Control, Image Sharpening Function, and Digital Zoom Function (from 1.1x to 10.0x) will broaden the F4000’s usage.

UHL-43

The UHL-43 is a one-piece Native 4K Ultra High Definition Digital Multi Purpose Camera, employing the same sensors as the UHK-430/435 “UNICAM XE” series cameras, and achieving the same performance. The camera provides the same operation and same workflow as the UHK-430/435 system cameras, and due to its compact one-piece form factor, it supports various POV applications such as flash and studio robotic camera, jib and Steadicam camera, traffic and weather camera, scoreboard camera, as well as, a wide range of surveillance applications. Moreover, the camera provides various kinds of 4K main output including 12G-SDI and Quad Link 3G-SDI, realizing flexible 4K system integration.

UHK-435

Featuring native 4K 2/3-inch CMOS sensors, three chip optics, conventional BTA lens mount, and the world’s first* transmission of an uncompressed 4K signal between camera and CCU, the UHK-435 4K/HD Camera System makes its debut as the first member of Ikegami’s next generation UNICAM XE camera series, developed with “no compromises” for the advent of a fully fledged 4K age. *Note: this is the world’s first 2/3-inch 3 CMOS sensor 4K camera with uncompressed transmission of 4:4:4 4K video (as of February 16, 2016). Source: our research.

UHK-430

Featuring native 4K 2/3-inch CMOS sensors, three chip optics, conventional B4 lens mount, and the world’s first* transmission of an uncompressed 4K signal between camera and CCU, the UHK-430 4K/HD Portable Camera

HDK-99

The camera employs 2.6 Mega pixel 2/3-inch CMOS image sensors, achieving superior quality HDTV video with horizontal resolution of 1000TVL, SNR of 62dB or more, and sensitivity of F11.

HDL-45E/HDL-45E1

The HDL-45E/E1 is a 3CCD multi-purpose HDTV camera achieving superb picture quality, high stability and excellent reliability with the incorporation of Ikegami’s cutting edge digital technologies. The camera provides superior picture image with newly developed 2/3-inch 2.3 Mega pixel AIT CCDs, digital processing LSI (ASIC) and the latest 14-bit A/D converters. With its compact one-piece form factor, this camera is suitable for various applications such as a weather camera, news flash camera, POV camera, etc. The HDL-45E1 adds support for the 1080/24psF and 1080/23.98psF formats.

HDK-73

2.6 Mega pixel high performance CMOS sensors The camera employs 2.6 Mega pixel 2/3-inch CMOS image sensors, achieving superior quality HDTV video with horizontal resolution of 1000TVL, SNR of 60dB or more, and sensitivity of F12.

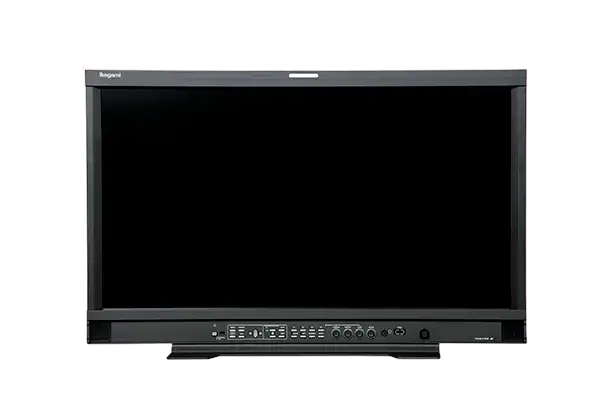

HQLM-3120W

The HQLM-3120W is equipped with 2 channels of 12G-SDI input as standard for efficient configuration with 4K equipment such as cameras and switchers. In addition, this monitor includes 3G-SDI, HD-SDI and HDMI inputs as standard. It has the flexibility to work with various interfaces in the image production field. By employing a 31.1-inch 4096×2160 pixel UHD LCD panel using LED backlight, it can reproduce high resolution 4K and 2K images.

HLM-2460W

The HLM-2460W has a 24-inch Full HD 1920×1200 Pixel 400cd, 10-bit resolution LCD panel. This models offer very narrow front-to-back dimensions, light weight and low power consumption. Multi-format SDI, 3G-SDI, HDMI, Ethernet and VBS inputs are provided as standard. By employing a Full 1920×1200 pixel LCD panel which has wide viewing angle, high brightness, high contrast, fast motion response, and high quality colour reproduction, the HLM-960WR/HLM-1760WR/HLM-2460W achieve real pixel allocation without resizing. Its superb gradation characteristics also make it ideal for a wide range of broadcast applications, including use in monitor walls.

HLM-1760WR

The HLM-1760WR has a 17-inch Full HD 1920×1080 Pixel 450cd, 10-bit resolution LCD panel. This models offer very narrow front-to-back dimensions, light weight and low power consumption. Multi-format SDI, 3G-SDI, HDMI, Ethernet and VBS inputs are provided as standard.

HLM-960WR

The HLM-960WR is a highly compact multi-format LCD monitor with a 9-inch Full HD 1920×1080 pixel 400cd 8-bit resolution LCD panel. This models offer very narrow front-to-back dimensions, light weight and low power consumption. Multi-format SDI, 3G-SDI, HDMI, Ethernet and VBS inputs are provided as standard.
