Broadcast ENG/EFP Lenses
The ultimate wildlife and live-sports lens, this 4K model balances stunning optical performance with advanced technology features. Convenient operation and lightweight portability are allied with an impressive 45x zoom ratio.
Compatible with 2/3-inch type cameras and boasting a high 45x zoom magnification, this 4K EFP zoom lens provides a super telephoto zoom range of 9.7mm to 437mm (up to 873mm with an extender). It has a wide focus rotation angle of 180 degrees, improving focus operation even at long focal lengths. The use of special proprietary glass in the optics and the employment of a multi-group movable lens system enables the lens to deliver high definition 4K resolution over the entire zoom range, resulting in images with rich gradations and minimal ghosting and flaring-excellent for HDR production. The improved drive unit, which features a faster actuation mechanism, incorporates a 16-bit encoder that can export highly-precise zoom and focus positioning data, supporting the production of virtual footage. The new IS control engine has also resulted in improved image stabilization performance, and is now additionally capable of maintaining control rate at even higher vibration frequencies, such as when mounted on a vehicle. All these features ensure the realization of beautiful 4K footage, whether it’s for the relay broadcast of concerts and sporting events, or for filming a nature documentary.
A high-end 4K broadcast lens that provides outstanding optical performance to support 2/3-inch 4K cameras. Despite weighing less than 2kg, CJ25ex7.6B packs in a 25x optical zoom that starts from focal length 7.6mm and reaches up to 380mm with the built-in 2x extender. Compatibility with BT.2020 and BT.2100 enables the achievement of high quality HDR footage. The digital drive unit with a high-resolution
16-bit absolute value encoder accurately detects position information, making detailed representation of images possible and calibration easy during CG synthesis.
The CJ20ex7.8B delivers superior color reproducibility for outstanding expressive power, with the lens contributing to the creation of compelling video brimming with realism. The built-in 2x extender increases the lens’s focal range by two fold while maintaining 4K superior optical performance.
A ground-breaking 2/3” 4K wide angle portable lens with 12x zoom and focal length that extends from an exceptional 4.3mm at the wide end to 52mm. Compact and lightweight, it’s the perfect way to bring high-quality 4K resolution to ENG and studio applications.
Compatible with 4K 2/3-inch type cameras, this high-performance 4K ENG lens boasts a 24x zoom ratio and a built-in 2x extender, providing a telephoto zoom range from 7.5mm up to 360mm. Canon’s unique optical design ensures that users achieve the high image quality so important for 4K resolution images throughout the entire zoom range, even at the telephoto range when the extender is in use. The lens retains the practicality and usability of HD lenses even as it supports 4K recording, all within its 1.82kg body (IRSE S, main unit only). The high performance digital drive unit features a 16-bit absolute value encoder which is capable of accurate position information detection, thus providing strong source of support for virtual production such as the integration of CG footage.

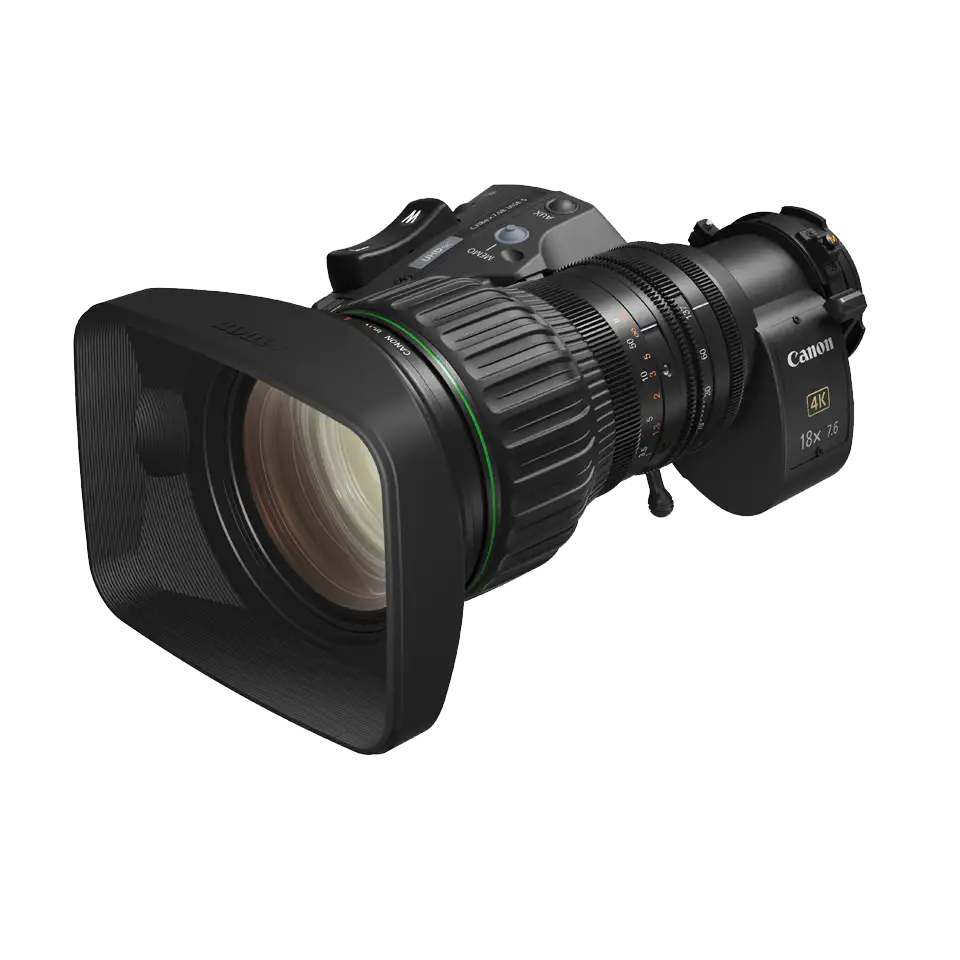

Compatible with 4K 2/3-inch type cameras, this high-performance 4K ENG lens weighs in at only 1.65kg (IRSE S, main unit only) making it ideal for portable cameras. It retains the practicality and usability of HD lenses even as it provides support for 4K recording. Equipped with an 18x zoom ratio and a built-in 2x extender, it achieves a total zoom range of 7.6mm up to 274mm. The high-performance digital drive unit features a 16-bit absolute value encoder which is capable of accurate position information detection, thus providing a strong advantage for production of CG footage.
Compatible with 4K 2/3-inch type cameras, this high-performance 4K ENG lens is capable of an angle-of-view that starts as wide as 4.3mm, reaching as far as 120mm with a 14x zoom ratio and a built-in 2x extender. Canons unique optical design provides the high image quality so important for 4K resolution images throughout the entire zoom range, even when the extender is in use. The high performance digital drive unit features a 16-bit absolute value encoder capable of accurate position information detection, providing a strong advantage for production of CG footage.
4K superzoom broadcast lens with 2.0x built-in extender, capable of up to 1000mm
A lightweight, compact 4K UHD superzoom broadcast lens capable of shooting up to 1000mm with the built-in 2x extender without the need for lens supporter. Equipped with Canon’s excellent optical technology and fulfilling the image quality requirements of 4K cameras, the lens also offers operability and good cost-performance. Its high mobility makes the lens suitable for news reporting, documentary and nature videography.
A 4K UHD broadcast lens that offers advanced image stabilization in the form of Vari-Angle Prism IS, which enables stabilization over a wider range of vibration frequencies than the conventional optical-shift method. This, together with the lens’ compact, lightweight and portable design, enables seamless, stable 4K footage in a wider range of shooting situations, such as when the user is walking or on a moving vehicle, helicopter or bike. The use of Canon’s excellent optical technologies ensures that the image quality necessary for 4K production is also fulfilled.
The HJ40x10B and the companion highly telephoto HJ40x14B represent the pinnacle of Canon portable high definition EFP lens design.
These lenses are intended for producers and broadcasters engaged in documentary, natural history, and the many other challenging location productions that seek superb image capture over very considerable distances. These lenses embody superb built-in image stabilization system
