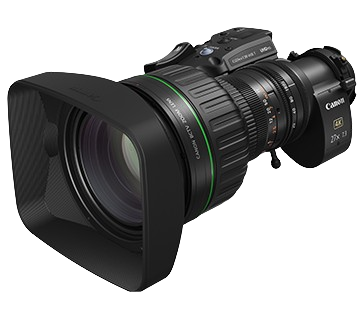

CJ27ex7.3B IASE T

CJ27ex7.3B IASE T

4K Broadcast Camera Portable Zoom Lens

Featuring a newly developed zoom lens with optical development technologies, 27x magnification, and focal lengths ranging from 7.3mm wide-angle to 197mm telephoto.

Ideal for studio, sports, and reporting jobs. Users can use a single lens to capture both the entire subject and close-ups, providing a wide range of visual expressions.

  • 27x Zoom Magnification (7.3mm to 197mm)
  • High Optical Performance for 2/3-inch 4K Cameras
  • Newly-developed e-Xs V Drive Unit

Features

  • Optical Excellence for All Your Shooting Needs

    Wide angle and high zoom magnification with the operability of telephoto zoom lens.



  •



    Optimised 2/3-inch 4K Camera Performance

    Excellent optical performance supported for 4K cameras maintains high resolution from the center of the image to the periphery



  •



    Newly-developed e-Xs V Drive Unit

    This is the preferred option for your professional needs for its superior usability features compared to other Drive Units on the market.



Versatile Focal Length for Variety of Shooting

Featuring newly developed optical technologies with best-in-class magnification* of 27x, with focal lengths from 7.3mm wide-angle to 197mm telephoto.

Designed for applications like studios, sports, and reporting where space is at a premium, it allows users to capture both wide-angle and close-up shots of the subject using a single lens, allowing for a comprehensive range of visual expressions.

*Among portable lenses for 2/3-inch 4K cameras with ENG-style design (held on shoulder for reporting, etc.)

Excellent performance for 2/3-inch 4K Cameras

Exclusive optical design technology delivers overwhelming optical performance for 2/3-inch 4K cameras. These lenses provide superior resolution and tonal gradation demanded of 4K images and control aberrations with precision, including colour blurring and colour fringing. They provide high 4K resolution and contrast from the centre of the image to the periphery throughout the zoom range.

Optical performance is maintain for 4K cameras even when using the built-in 2x extender.

Minimal Fluctuating Abberations & Variations

A multi-group zoom system and floating focus system suppress fluctuating aberrations caused by zooming and focusing. The optimal arrangement of aspherical lenses and glass with high refractive power ensures consistency, with no optical performance change from the image's centre to the edges throughout the zoom range.

New advancements in the inner focus system are used to improve resolution in image peripheries by suppressing focus fluctuations.





Suppresses Ghosting Flaring and Chromatic Abberation

Coating and reflection suppression inside the lens barrel surface reduce ghosting and flaring, providing outstanding visual expression with rich gradation ideal for HDR and WCG shooting.Optimal configurations of fluorite and UD glass provide excellent aberration correction.

This setup achieves beautiful images with no colour blurring or tinting along the edges and outstanding colour reproduction in every corner.



e-Xs V Digital Drive Unit


  •



    Operability

    Following the operability and systematicity of conventional broadcast lenses and the Digital Drive Unit, servo controllability has been improved to better track camera operators' wishes for high-quality shoots. An information display on top of the Drive Unit improves camera operator visibility.



  •



    Reliability

    The highly versatile USB Type-C connector provides support functions for equipment setup during preparation and maintenance in preparation for shooting.



  •



    Remote/Virtual support

    Multiple interfaces are provided to meet the diverse needs of remote shooting and virtual production. A high-resolution 16-bit absolute value encoders improve location detection accuracy in high-demand virtual production.



Operability Accessories

Type Name
Zoom Controller ZSD-300D, ZSD-380D
ZDJ-G01(BDC-21)*1, ZDJ-GN1(BDC-21) *1, ZDJ-S01(BDC-21)*1
ZDJ-P01(BDC-21)*1, ZDJ-D02(BDC-11)*1, ZDJ-DN2(BDC-21)*1
Focus Controller FPD-400D, FFC-200*2, FC-40*2FFM-100*2
FDJ-P01(BDC-21)*1, FDJ-D02(BDC-11)*1
FDJ-G01(BDC-21)*1, FDJ-S01(BDC-21)*1

*1 ACC studio lenses can also be used. Note that this requires an adapter cable. Special caution is required as this may exceed the camera’s electrical capacity limits.
*2 Can be attached, but not recommended for 4K shooting.

Optical Accessories

Type CJ27ex7.3B IASE T
Tele-side Converter T15HG + ACC98II
Wide Converter W80HG + ACC98II
Fish-eye Attachment FEA60HG + ACC98II
Close-up Lens 105CL-UP800HG
Polarizing Filter PL/105
UV Filter UV/94, UV/105

Specifications

Extender 1.0x 2.0x
Focal Length 7.3mm - 197mm 14.6mm - 394mm
Zoom Ratio 27x

Maximum Relative Aperture
(F-number)

 1:1.8 (7.3mm - 197mm)
1:2.95 (197mm)		 1:3.6 (14.6mm - 240mm)
1:5.9 (394mm)
Angular Field of View 66.7° × 40.6° (7.3mm)
2.79° × 1.57° (197mm)		 36.4° × 21.0° (14.6mm)
1.4° × 0.79° (394mm)
Minimum Object Distance
(M.O.D.)

0.80m
(10mm with Macro)
Object Dimensions at M.O.D. 98.0 x 55.1cm (7.3mm)
3.8 x 2.1cm (197mm)		 49.0 x 27.6cm (14.6mm)
1.9 x 1.1cm (394mm)
Approx. Size
(W x H x L)		 169.9 x 117.2 x 229.0mm
Approx. Weight

2.10kg
