viztrick AiDi

An AI-powered, tablet-operated system that visualizes player movements, distances, speeds, profiles, and scores instantly—plus delivers real-time 9:16 autocropping—making live coverage smoother and more engaging.

Viztrick AiDi, provided in collaboration with Nippon TV

Highlight

No Internet Required AI Technology
An innovative new system that automates and simpli es broadcast operations in real time using just a single PC.
Easy of Use & Expressive Power
Refined through practical production experience, offering intuitive usability and rich expression usingbroadcast-quality graphic technology.
Learning from Vast Video & Audio Data
High-precision processing achieved through the analysis of broadcast archives.
Real-Time 9:16 Autocropping for Immediate Streaming to Mobile Devices
The GoVertical! AiDi feature of viztrick AiDi delivers real-time, AI-aided 9:16 autocropping for immediate live streaming to mobile platforms. It is ideal not only for live sports, but also for events such as red-carpet premieres, scripted and unscripted shows, movie trailers, conferences, and news—anywhere 9:16 streaming is in demand.
GoVertical! AiDi

System Overview

System Overview Features
  • No internet connection is required for AiDi.
  • Process input sources in real time
  • Standalone system
  • Analysis can be output as a graphic, enhancing visual representation.

Base & Options

AiDi Sports Hub (Base) for all sports
2D Video Pen
  • Brush: Draw freehand lines on the screen
  • Arrow: Draw arrowed lines on the screen
  • Number: Display circled numbers on the screen
Soccer/Football options
2.5D Ground Drawing
  • Brush: Draw freehand lines on the screen
  • Arrow: Draw arrowed lines on the screen
  • Player Track: Displays a circular or rectangular marker at the player’s feet
Motion Data
  • Player Speed: Player speed display
  • Player Distance: Distance between players
  • Distance & Angle : Distance & angle display
Others
  • Face Tagging: Recognizes players from video and displays their profiles
Baseball options
2.5D Ground Drawing
  • Brush: Draw freehand lines on the screen
  • Arrow: Draw arrowed lines on the screen
  • Player Track: Displays a circular or rectangular marker at the player’s feet
Motion Data
  • Player Speed: Player speed display
  • Player Distance: Distance between players
Others
  • Face Tagging: Recognizes players from video and displays their profiles
  • Auto Score Graphics: Creating graphics from score data
Automatic Cropping option for All Sports
  • Real-time auto video cropping with face recognition

Pen Display Tablet GUI

Pen Display Tablet GUI

Functions

2D Video Pen (For Soccer/Football and Baseball)Balls
2Dicons
  • Brush: Draw freehand lines on the screen
  • Arrow: Draw arrowed lines on the screen
  • Number: Display circled numbers on the screen
AiDi 2D video pen On-screen graphics will remain fixed when panning the camera.
2.5D Ground Drawing (For Soccer/Football and Baseball)Balls
2.5Dicons_250903
  • Brush: Draw freehand lines on the screen
  • Arrow: Draw arrowed lines on the field display
AiDi 2D video pen With AI field recognition, pen-drawn graphics on the tablet are overlaid onto the video and stay fixed to the field even during camera movements.
2.5Dicons_250903
  • Player Track: Display a circular or rectangular marker at the player’s feet
Player Track Player Track AI technology recognizes each player. Simply tap a player with the tablet to instantly display a circular or rectangular marker at their feet, which then tracks their movements in real time. On-screen graphics will remain fixed when panning the camera.
Motion data (For Soccer/Football and Baseball)
motiondataiconsforsoccer
  • Player Speed: Player speed display
Player Speed Player Speed The AI technology recognizes both the field and each player. Simply tap a player on the tablet to display and automatically track their speed.
motiondataiconsforsoccer
  • Player Distance: Distance between players
Player Distance The AI technology recognizes both the field and each player. Simply tap two players on the tablet to display and automatically track the distance between them, along with a connecting line.
Other Features (For Soccer/Football and Baseball)
  • Face Tagging: Recognizes players from video and displays their profiles
Face Tagging Face Tagging Based on AI face recognition, the system instantly suggests a profile graphic. Player face information and profiles can be pre-registered or registered on-site. Once finalized, design remains set for future use.
Motion data (For Soccer/Football)
motiondataiconsforsoccer
  • Distance & Angle: Distans & angle display

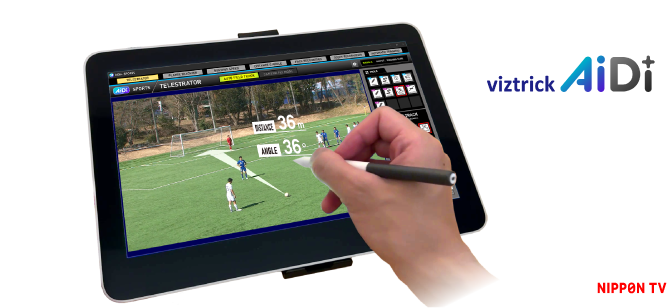

Distance and Angle The AI technology recognizes the field. Simply tap two points (A and B) on the tablet to display the distance and angle between them.
Other Features (For Baseball)
  • Auto Score Graphics: Creating graphics from score data
Auto Score Graphics Auto Score Graphics Simply select the part of the scoreboard or image you want to display, and AI technology automatically generates the score graphics.
Option(All sports)
  • Automatic Cropping : Real-time automatic video cropping with face recognition.
Auto cropping
Base and Options List
Base & options list

?Product specifications are subject to change without notice.
