Waveform Monitors
LV5300A

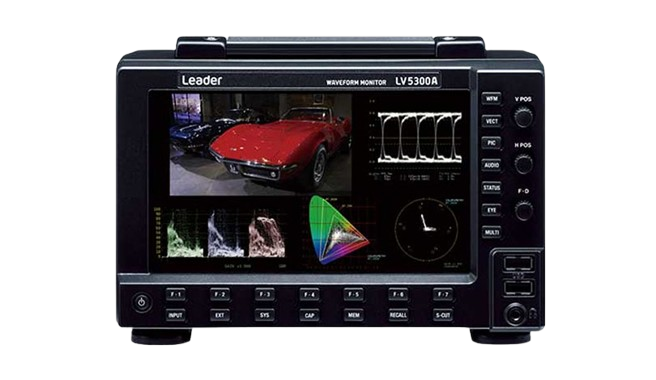

he LV5300A WAVEFORM MONITOR is compact without sacrificing performance, supporting SDI signals from SD through 12G rates and including physical layer testing. The LV5300A is a 3U half-rack, short-depth waveform monitor with a built-in 7-inch touch screen display and a full array of buttons and control knobs.
The waveform, vector, picture, audio, and eye pattern displays enable simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status display allows you to assess errors and system stability with both event logs and long-term charts. Audio embedded in SDI signals can be shown on the level, Lissajous, and status displays.

Features

The LV5300A has a DC power input, which enables it to be used in locations where AC power supplies are not available. Moreover, the LV5300A can be battery-operated by installing a battery mount option. With its combination of touch screen, dedicated buttons and knobs, and user-defined screen layouts the LV5300A allows complex measurement and monitoring tasks to be quickly completed in almost any environment.

  • Supports various signal inputs It supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI single link, 4K 3G-SDI dual link.
  • Excellent operability The LV5300 adopts a 7-inch full HD panel with a touch panel function.
  • Customizable layout Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.
  • SDI signal generation function SDI signal generation function can handle from HD-SDI to 12G-SDI.
  • HDR The HDR signal level monitoring and the level management at the assumed luminance (cd /m2 ) in a display considering OOTF are possible.
  • 3D-LUT function By loading a 3D-LUT cube file, the 3D-LUT can be converted in real time to support various measurements and conversion outputs.(SER23 option is required.)
  • Supports full range of SDR Supports waveform display, vectorscope, CIE chart, histogram, CineLite, CineZone, and full range of DPX and TIFF file capture.
  • False Color Display Support False color display can be added to pictures, making it easy to determine highlights, human skin tones, 18% gray, blacks, etc.
