CV570 - NDI|HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec

NDI®|HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec

Featuring the extremely efficient NDI|HX3 codecs gives the miniature CV570 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, MPEG-TS, HEVC and more.

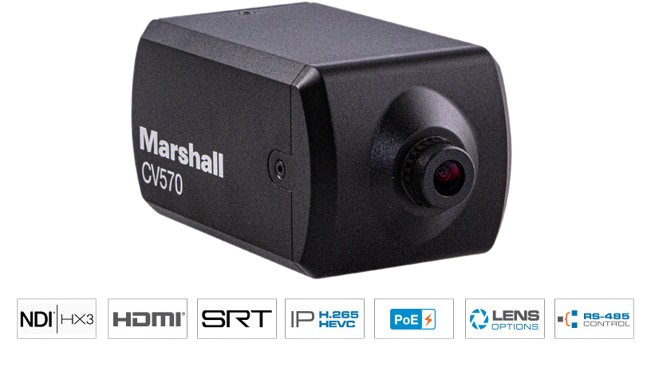

Miniature POV Camera NDI|HX3 and HDMI

  • 2.2 Megapixel Sony sensor with larger pixels and square pixel array
  • Interchangeable M12 lens mount comes with 4.0mm - 85º H.AOV lens
  • HDMI + network support for NDI
  • One-cable to camera option for power (PoE), video, audio, and remote setting control
  • 1920x1080p, 1920x1080i & 1280x720p resolutions available
  • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Remote adjust & match via Visca over IP, NDI
  • Power Draw: 6W with 7~15V flexibility or PoE over Cat cable
