The Riedel Venue Gateway is a low-latency, bi-directional, multi-channel and multi-format contribution appliance bridging broadcast production infrastructures with distant venues. It aggregates and transports video signals, audio signals, and tally.

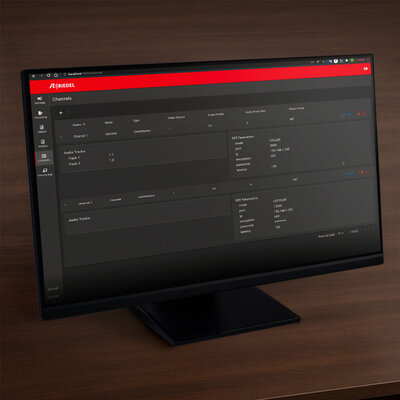

Supporting SRT and SDI connectivity, the Venue Gateway offers great agility for contribution feed delivery. The web management interface has been designed to centralize and simplify the configuration. Featuring codec formats like H.264, the gateway solution provides software defined low-latency encoding and decoding on decoding on 8, 12 or 16 bi-directional channels with the highest broadcast quality.

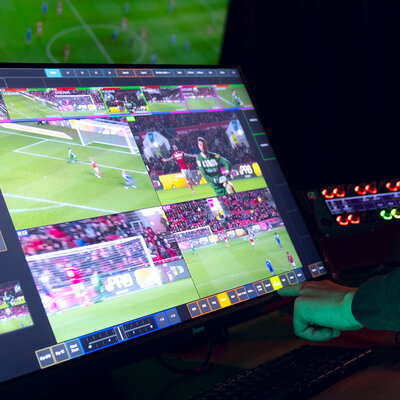

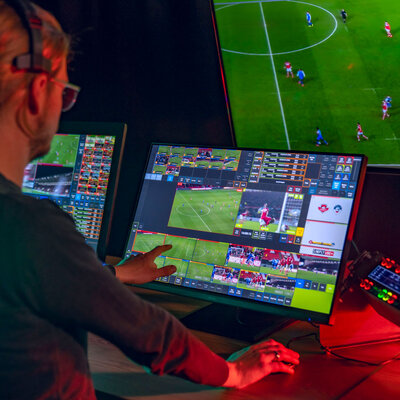

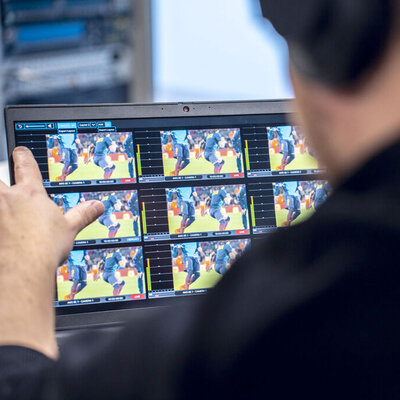

The Venue Gateway offers seamless integration with direct SRT sources being sent to the ViBox platform. Its built-in low latency multiviewer lets remote or on-site engineers view all sources in real time and test the network infrastructure with pre-loaded content.
The Venue Gateway is available as Standard or Advanced versions, with the Venue Gateway Standard 8 channel offering a more compact SDR model, while the Venue Gateway Advanced brings HDR capabilities in the respective 1 RU or 2RU frames.
Hardware & Software
|
Venue Gateway 8 Standard
|
Venue Gateway 8 Advanced
|
Venue Gateway 1612 Advanced
|
- 8 Channel (SDR) bi-directional SRT encoder/decoder for remote production contribution.
|
- 8 Channel (HDR) bi-directional SRT encoder/decoder for remote production contribution
|
- 16 Channel (SDR) or 12 Channel (HDR) bi-directional SRT encoder/decoder for remote production contribution
|
- Built-in low latency multiviewer offering remote or on-site monitoring
|
- Built-in low latency multiviewer offering remote or on-site monitoring
|
- Built-in low latency multiviewer offering remote or on-site monitoring
|
- Internal audio routing from encode to decode sources with embedded audio
|
- Internal audio routing from encode to decode sources with embedded audio
|
- Internal audio routing from encode to decode sources with embedded audio.
|
- Receives tally from remote production mixer for camera operators via TSL-5 or GPI/O
|
- Receives tally from remote production mixer for camera operators via TSL-5 or GPI/O
|
- Receives tally from remote production mixer for camera operators via TSL-5 or GPI/O.
|
Benefits
- Easy and flexible to deploy with multiple format codecs with low latency, high quality signals
- Aggregates all key requirements in a transport solution providing video, audio, and tally
