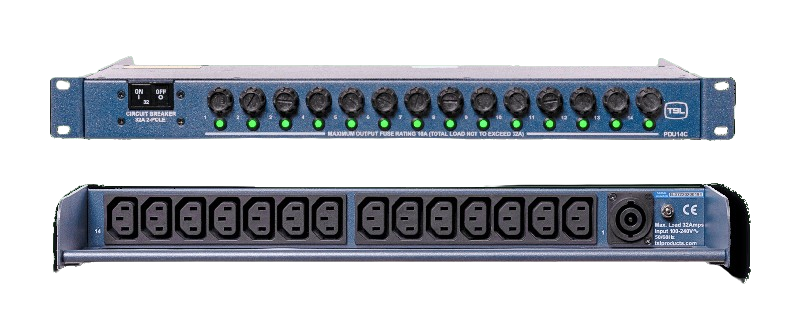

PDU14C

Building on a long history of supplying reliable rack power products, TSL’s essential power distribution family delivers high quality and reliability by being built to the most exacting standards. Designed to deliver best-in-class reliability, the essential power units have all-soldered joints (not crimped) with bus bar construction, meaning years of reliable service. To avoid catastrophic system failure, all the units feature resettable over-current protection of either 20A or 32A to guard against the accidental overloading of the units.

Ask an Expert – Book a Call


Features

  • 1U 19″ rack mountable
  • Single input power source
  • Front-mounted 14 × 10A fuse
  • 14 × LED power indicator (green)
  • 20A & 32A versions
  • Rugged steel construction
  • 14 × 10A IEC13
  • UL approved 2-pole, non-illuminated black, 20A or 32A hydraulic magnetic resettable circuit breaker (switch with an overload trip)
  • Accessories: Neutrik or equivalent mains input cable connector, 20A or 32A included
  • Depth: 120mm (without tie bar), 220mm (with tie bar)
  • CE, RoHS

Specifications

Input

  • Voltage: 1?, 110/250VAC
  • Frequency: 50Hz/60Hz (as per supply input)
  • Power In Socket Type: Neutrik powerCON or equivalent power input connector
  • Input Current: 20A or 32A

Output

  • Voltage: 1?, 110/250VAC
  • Frequency: 50Hz/60Hz (as per supply input)
  • Power Out Socket Type: IEC C13 outlet (14 nos.)
  • Total Output Current: 20A or 32A

Mechanical Specifications

  • Dimensions (WxHxD): 482.6mm × 45mm × 120mm
  • Weight: 1.5kg
  • Mounting: 465mm (input)
  • Colour: Texture Metallic Blue
  • Operating Temperature: 0 – 45°C
  • Humidity: 0 – 95% RH non-condensing
  • Compliance: CE, RoHS
